Functions:
Heating · Cooling · DHW

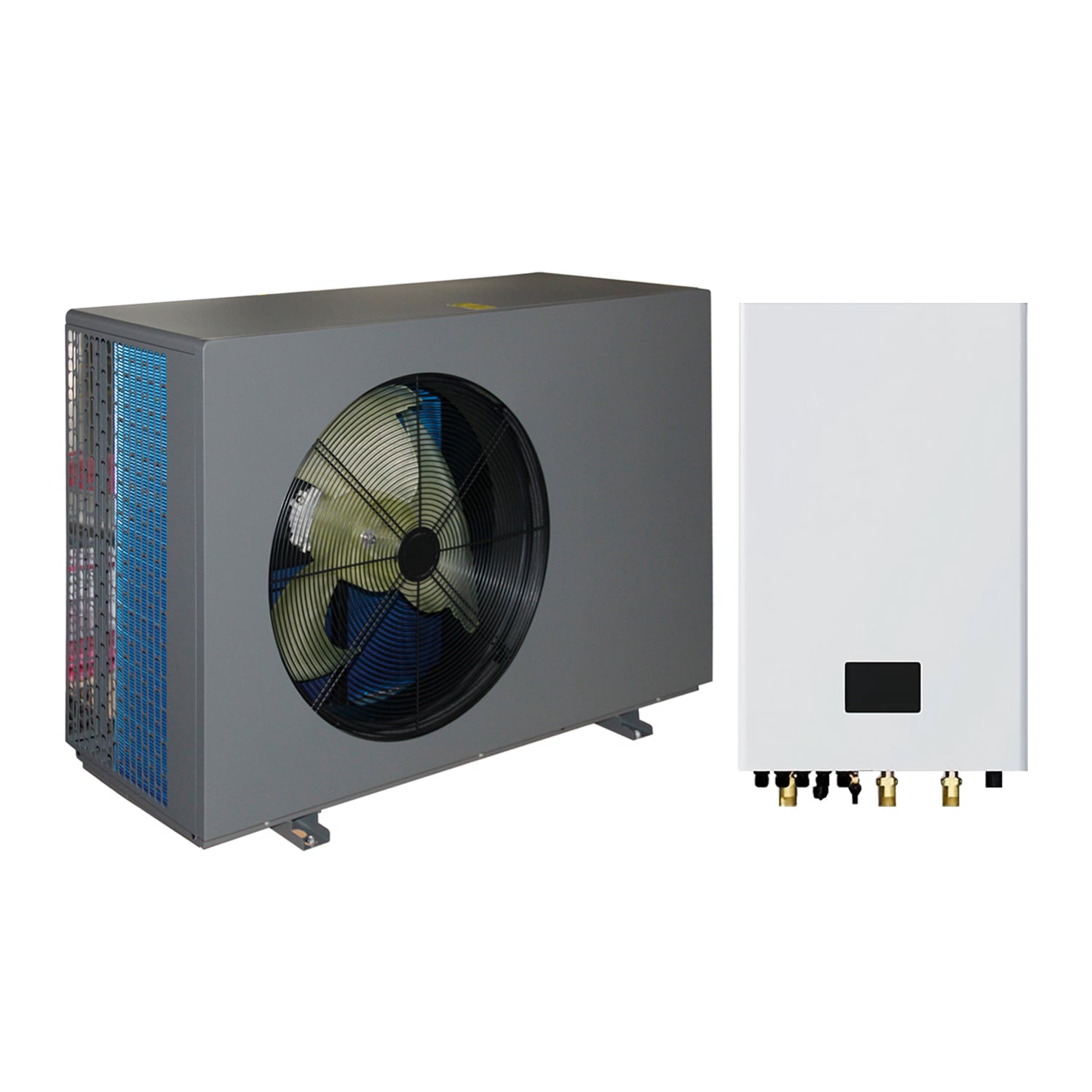

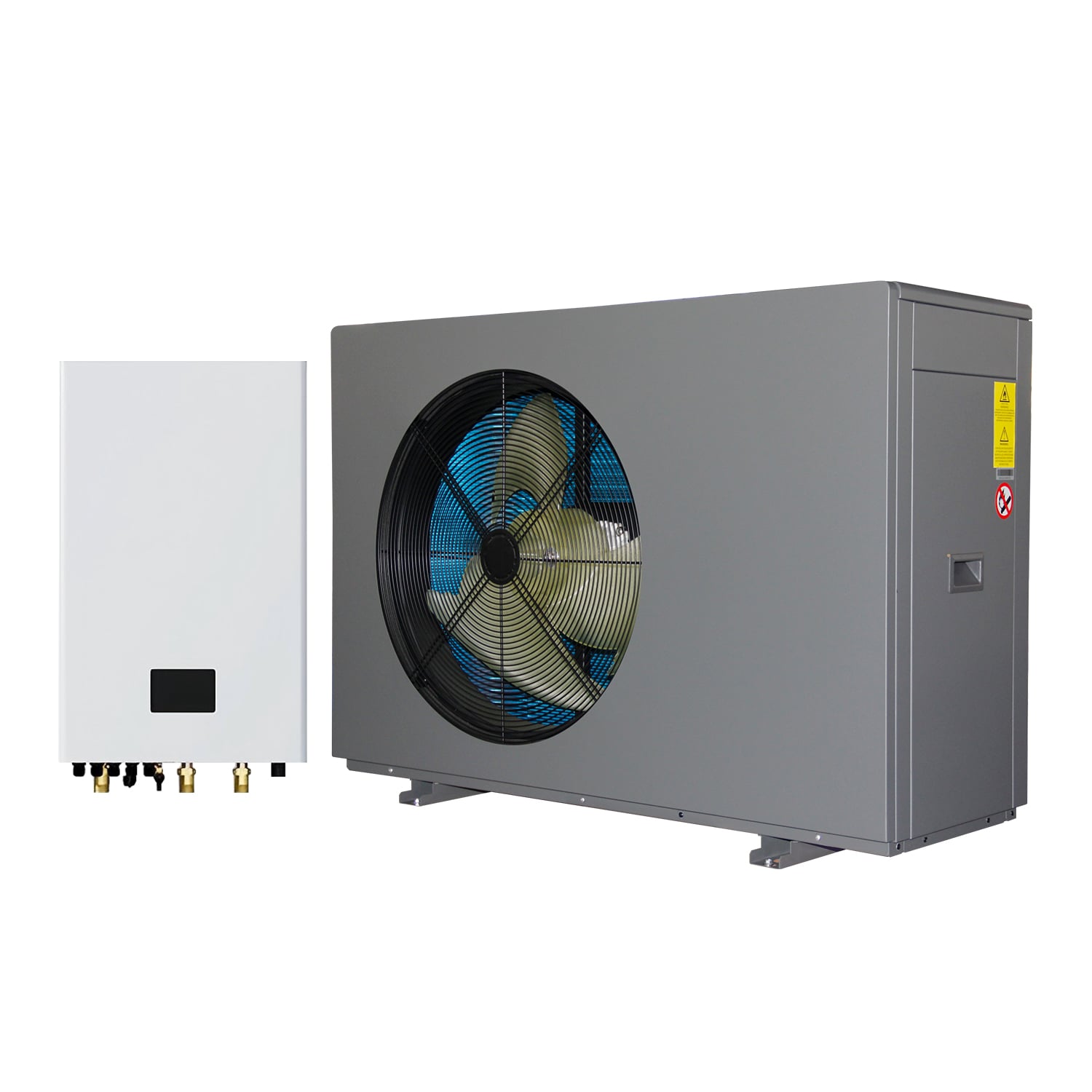

Micoe R32 split tri-generation heat pump for heating, cooling and DHW. Split design ensures -30°C operation. Panasonic DC inverter with EVI, A+++ efficiency. Ideal for residential and light commercial use.
Certifications:
CE · ErP
Features:
R32 refrigerant, GWP=675
Energy class: A+++
Antifreeze Function
Modbus RTU protocol
Easy&Quick Maintenance
Compact Design
Panasonic DC inverter compressor with EVI technology
-30℃ Stable Operation
5-inch TFT touch screen with WiFi control
Overview
The Micoe R32 split tri-generation heat pump delivers efficient heating, cooling and domestic hot water in one integrated system. The split design separates the outdoor unit from the indoor hydraulic module, ensuring reliable performance down to -30°C. Powered by a Panasonic DC inverter compressor with EVI technology, it achieves A+++ energy efficiency (A7/W35) and is ideal for residential and light commercial applications.
1. Split Design – Reliable in Extreme Cold
The outdoor unit contains the refrigeration circuit; the indoor unit houses the hydraulic system. This separation protects the water circuit from freezing even at -30°C or during power outages.
2. High Efficiency & Wide Operating Range
Achieves A+++ energy efficiency at A7/W35 conditions and A++ at A7/W55 conditions. Engineered for year-round reliability, the unit delivers stable heating down to -25°C while maintaining efficient cooling up to 45°C — suitable for diverse climate zones across Europe and beyond.
3. Panasonic DC Inverter with EVI Technology
Equipped with a Panasonic DC inverter compressor and EVI (Enhanced Vapor Injection) technology, the unit delivers stable, efficient heating even in extreme cold down to -25°C. The inverter adjusts speed continuously, eliminating energy-wasting start-stop cycles and ensuring precise temperature control.
4. Smart WiFi Control & Modbus RTU
Built-in WiFi module enables remote monitoring and control via mobile APP. Supports Modbus RTU protocol for seamless integration with building management systems — ideal for centralized control and monitoring across larger installations.
5. Low Noise Operation
The split design places the compressor outdoors — indoor unit operates at only 35dB(A), outdoor unit as low as 49dB(A) depending on model.
6. R32 Refrigerant
R32 refrigerant offers five key advantages: higher energy efficiency with a GWP of 675 — approximately 70% lower than R410A; lower environmental impact with zero ozone depletion potential; improved safety with lower flammability; compact unit design allowing smaller footprint and lighter weight; and cost-effectiveness with readily available supply.
7.Why Partner With Micoe
Manufacturing Strength — Heat Pump Manufacturer & OEM/ODM Supplier
Micoe is a Global Top 500 New Energy Enterprise with 26 years of experience. We operate 5 manufacturing bases across 800,000+ m² with 38 production lines and 1.7M+ annual capacity — making us a trusted heat pump manufacturer and OEM supplier for global distributors. With 95% core components made in-house, helium leak testing 7X stricter than national standards, 48 labs, and -60°C to +55°C testing, our products are exported to over 100 countries.
After-Sales Support — Technical Support, Warranty & Spare Parts
We provide 24/7 technical support, installation guidance, remote troubleshooting, fast spare parts delivery, dedicated project teams, and warranty coverage — backed by a global service network spanning 100+ countries. Professional after-sales service for heat pump systems worldwide.
| Model | MMHP-006TA1S | MMHP-010TA1S | MMHP-015TA1S | MMHP-018TA1S | MMHP-010TA3S | MMHP-015TA3S | MMHP-018TA3S | MMHP-024TA3S | ||
| Power Supply | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 380-415/3/50 | 380-415/3/50 | 380-415/3/50 | 380-415/3/50 | ||
| Product Technical data | ||||||||||
| Heating output Min./Max. | A7/W35 | kW | 2.50-8.30 | 4.20-12.20 | 5.30-16.50 | 6.20-20.50 | 5.30-16.60 | 6.20-20.50 | 6.20-20.50 | 6.50-26.10 |
| Heating Power Input Min./Max. | kW | 0.57-1.92 | 0.86-2.88 | 1.15-4.15 | 1.36-5.28 | 1.15-4.15 | 1.36-5.28 | 1.36-5.28 | 1.78-6.45 | |
| Heating output Rated | kW | 6.46 | 10.58 | 14.75 | 18.77 | 14.75 | 18.77 | 18.77 | 23.98 | |
| COP | w/w | 4.93 | 4.62 | 4.6 | 4.51 | 4.60 | 4.51 | 4.51 | 4.34 | |
| Heating output Min./Max. | A2/W35 | kW | 2.36-7.22 | 3.96-10.61 | 5.00-14.35 | 5.85-17.83 | 5.85-17.83 | 6.89-22.70 | ||
| Heating Power Input Min./Max. | kW | 0.59-2.00 | 0.90-3.00 | 1.20-4.32 | 1.42-5.50 | 1.42-5.50 | 1.72-6.72 | |||
| Heating output Rated | kW | 5.62 | 9.2 | 12.83 | 16.32 | 16.32 | 20.85 | |||
| COP | w/w | 4.12 | 3.86 | 3.84 | 3.76 | 3.76 | 3.62 | |||
| Heating output Min./Max. | A-7/W35 | kW | 2.10-6.19 | 3.53-9.10 | 4.45-12.30 | 5.21-15.28 | 5.21-15.28 | 6.13-19.46 | ||
| Heating Power Input Min./Max. | kW | 0.64-2.22 | 0.97-3.32 | 1.30-4.79 | 1.54-6.09 | 1.54-6.09 | 1.86-7.44 | |||
| Heating output Rated | kW | 4.82 | 7.89 | 11.00 | 13.99 | 13.99 | 17.88 | |||
| COP | w/w | 3.19 | 2.98 | 2.97 | 2.91 | 2.91 | 2.80 | |||
| Heating output Min./Max. | A7/W55 | kW | 2.30-7.62 | 3.85-11.20 | 4.90-15.10 | 6.30-19.90 | 4.90-15.10 | 6.30-19.90 | 6.30-19.90 | 6.90-26.10 |
| Heating Power Input Min./Max. | kW | 0.75-2.61 | 1.13-3.75 | 1.65-5.25 | 1.65-6.82 | 1.65-5.25 | 1.65-6.82 | 1.65-6.82 | 1.95-8.55 | |
| Heating output Rated | kW | 5.92 | 9.28 | 14.51 | 18.47 | 14.51 | 18.47 | 18.47 | 23.77 | |
| COP | w/w | 3.17 | 3.12 | 3.03 | 2.97 | 3.03 | 2.97 | 2.97 | 3.08 | |
| Heating output Min./Max. | A2/W55 | kW | 2.17-6.63 | 3.63-9.74 | 4.62-13.13 | 5.94-17.30 | 5.94-17.30 | 6.51-22.17 | ||
| Heating Power Input Min./Max. | kW | 0.78-2.72 | 1.18-3.91 | 1.72-5.47 | 2.00-7.10 | 2.00-7.10 | 2.19-8.70 | |||
| Heating output Rated | kW | 5.15 | 8.07 | 12.62 | 16.06 | 16.06 | 20.67 | |||
| COP | w/w | 2.65 | 2.60 | 2.53 | 2.48 | 2.48 | 2.57 | |||
| Heating output Min./Max. | A-7/W55 | kW | 1.93-5.68 | 3.23-8.35 | 4.11-11.26 | 5.29-14.84 | 5.29-14.84 | 5.79-19.01 | ||
| Heating Power Input Min./Max. | kW | 0.85-3.01 | 1.28-4.33 | 1.86-6.06 | 2.17-7.87 | 2.17-7.87 | 2.37-9.64 | |||
| Heating output Rated | kW | 4.41 | 6.92 | 10.82 | 13.77 | 13.77 | 17.72 | |||
| COP | w/w | 2.05 | 2.02 | 1.96 | 1.92 | 1.92 | 1.99 | |||
| Hot Water output Min./Max. | Outdoor air 20℃/15℃, Inlet/Outlet water 15℃/55℃ | kW | 3.00-9.96 | 4.83-14.04 | 6.12-18.96 | 7.50-24.24 | 6.12-18.96 | 7.50-24.24 | 7.50-24.24 | 8.04-31.32 |
| Hot Water Power Input Min./Max. | kW | 0.66-2.26 | 0.99-3.32 | 1.10-4.70 | 1.51-6.05 | 1.10-4.70 | 1.51-6.05 | 1.51-6.05 | 1.87-7.50 | |
| Hot Water output Rated | kW | 7.43 | 11.91 | 17.56 | 22.34 | 17.56 | 22.34 | 22.34 | 28.65 | |
| COP | w/w | 4.67 | 4.52 | 4.39 | 4.3 | 4.39 | 4.30 | 4.30 | 4.29 | |
| Cooling output Min./Max. | A35/W7 | kW | 1.80-7.10 | 2.60-10.30 | 4.50-13.50 | 5.50-17.50 | 4.50-13.50 | 5.50-17.50 | 5.50-17.50 | 5.20-21.30 |
| Cooling Power Input Min./Max. | kW | 0.61-2.43 | 0.91-3.65 | 1.45-4.85 | 1.65-6.25 | 1.45-4.85 | 1.65-6.25 | 1.65-6.25 | 1.95-8.20 | |
| Cooling output Rated | kW | 5.53 | 8.54 | 12.5 | 15.88 | 12.50 | 15.88 | 15.88 | 20.44 | |
| EER | w/w | 3.04 | 3.01 | 2.77 | 2.96 | 2.77 | 2.96 | 2.96 | 2.86 | |
| Cooling output Min./Max. | A35/W18 | kW | 2.16-8.52 | 3.12-12.36 | 5.40-16.20 | 6.60-21.00 | 6.60-21.00 | 7.02-25.56 | ||
| Cooling Power Input Min./Max. | kW | 0.55-2.19 | 0.77-3.29 | 1.31-4.59 | 1.49-5.63 | 1.49-5.63 | 1.76-7.38 | |||
| Cooling output Rated | kW | 6.64 | 10.25 | 15.00 | 19.06 | 19.06 | 24.53 | |||
| EER | w/w | 4.05 | 4.01 | 3.70 | 3.95 | 3.95 | 3.81 | |||
| SCOP | W35 | kWh/kWh | ||||||||
| Energy efficiency class | / | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | |
| SCOP | W55 | kWh/kWh | ||||||||
| Energy efficiency class | / | A++ | A++ | A++ | A++ | A++ | A++ | A++ | A++ | |
| Sound Pressure level | W35 | dB(A) | 49 | 52 | 52 | 53 | 54 | 55 | 55 | 56 |
| Sound power level | dB(A) | 63 | 66 | 67 | 68 | 68 | 71 | 70 | 72 | |
| Sound Pressure level | W55 | dB(A) | 48 | 50 | 50 | 54 | 54 | 56 | 55 | 58 |
| Sound power level | dB(A) | 63 | 64 | 65 | 68 | 69 | 71 | 71 | 73 | |
| Power Input Max. | OUT DOOR | kW | 2.71 | 3.83 | 6.2 | 6.2 | 6.2 | 7.5 | 7.5 | 10 |
| Current Input Max. | A | 12 | 17 | 27.5 | 27.5 | 10.5 | 35 | 13 | 17 | |
| Auxiliary heater power | IN DOOR | kW | 3 | 3 | 3 | 3 | 9 | 3 | 9 | 9 |
| Power Input Max. | kW | 3.5 | 3.5 | 3.5 | 3.5 | 9.5 | 3.5 | 9.5 | 9.5 | |
| Current Input Max. | A | 15.6 | 15.6 | 16.2 | 15.6 | 16.2 | 15.6 | 16.2 | 16.2 | |
| Heating Ambient Temperature | ℃ | -25~35 | -25~35 | -25~35 | -25~35 | -25~35 | -25~35 | -25~35 | -25~35 | |
| Cooling Ambient Temperature | ℃ | 16~45 | 16~45 | 16~45 | 16~45 | 16~45 | 16~45 | 16~45 | 16~45 | |
| Hot Water Ambient Temperature | ℃ | -25~45 | -25~45 | -25~45 | -25~45 | -25~45 | -25~45 | -25~45 | -25~45 | |
| Heating Water side operating temperature | ℃ | 20~60 | 20~60 | 20~60 | 20~60 | 20~60 | 20~60 | 20~60 | 20~60 | |
| Cooling Water side operating temperature | ℃ | 25~5 | 25~5 | 25~5 | 25~5 | 25~5 | 25~5 | 25~5 | 25~5 | |
| Hot Water Water side operating temperature | ℃ | 20~55 | 20~65 | 20~65 | 20~65 | 20~65 | 20~65 | 20~65 | 20~65 | |
| Refrigerant Type／Charge／GWP | OUT DOOR | R32 /1.35 / 675 | R32 /1.9 / 675 | R32 /1.9 / 675 | R32 /2.9/ 675 | R32 /2.9 / 675 | R32 /3.7/ 675 | R32 /3.7/ 675 | R32 /3.7/ 675 | |
| CO₂ Equivalent | 0.91t | 1.28t | 1.28t | 1.96t | 1.96t | 2.50t | 2.50t | 2.50t | ||
| Operation Pressure(Low Side) | MPa | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Operation Pressure(High Side) | MPa | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | |
| Maximum Allowable Pressure | MPa | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | |
| Electrical Shockproof | / | I | I | I | I | I | I | I | I | |
| IP Class | / | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | |
| Air flow Rated | m³/h | 3500 | 4500 | 4500 | 6500 | 6500 | 8500 | 8500 | 8500 | |
| Unit Dimensions (W/H/D) | mm | 1100×445×850 | 1100×445×850 | 1100×445×850 | 1110×480×850 | 1110×480×850 | 1110×445×1450 | 1110×445×1450 | 1110×445×1450 | |
| Shipping Dimensions (W/H/D) | mm | 1160×530×1010 | 1160×530×1010 | 1160×530×1010 | 1160×565×1010 | 1160×565×1010 | 1170×530×1610 | 1170×530×1610 | 1170×530×1610 | |
| Net Weight | kg | 90 | 92 | 92 | 109 | 109 | 132 | 132 | 140 | |
| Gross Weight | kg | 100 | 102 | 102 | 119 | 119 | 146 | 146 | 155 | |
| Water Piping Connections | IN DOOR | In | G1 | G1 | G1 | G1 | G1 | G1-1/2 | G1-1/2 | G1-1/2 |
| Water Pressure Drop | kPa | 25 | 27 | 27 | 30 | 30 | 32 | 32 | 35 | |
| Water Pressure Min/Max | MPa | 0.1 / 0.3 | 0.1 / 0.3 | 0.1 / 0.3 | 0.1 / 0.3 | 0.1 / 0.3 | 0.1 / 0.3 | 0.1 / 0.3 | 0.1 / 0.3 | |
| Water Flow Rated | m³/h | 1.1 | 1.75 | 1.75 | 2.52 | 2.52 | 3.2 | 3.2 | 4.12 | |
| Sound Pressure level | dB(A) | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | |
| Electrical Shockproof | / | I | I | I | I | I | I | I | I | |
| IP Class | / | IPX1 | IPX1 | IPX1 | IPX1 | IPX1 | IPX1 | IPX1 | IPX1 | |
| Unit Dimensions (W/H/D) | mm | 495×800×280 | 495×800×280 | 495×800×280 | 495×800×280 | 495×800×280 | ||||
| Shipping Dimensions (W/H/D) | mm | 545×900×330 | 560×920×355 | 560×920×355 | 560×920×355 | 560×920×355 | ||||
| Net Weight | kg | 44 | 47 | 47 | 50 | 50 | ||||
| Gross Weight | kg | 49 | 52 | 52 | 55 | 55 | ||||
| Table of configuration parameters | ||||||||||
| Compressor | Brand | Panasonic | Panasonic | Panasonic | Panasonic | Panasonic | Panasonic | Panasonic | Panasonic | |
| Type | Double-Rotor | Double-Rotor | Double-Rotor | Double-Rotor | Double-Rotor | Double-Rotor | Double-Rotor | Double-Rotor | ||
| Plate Heat Exchanger | Brand | wealyield | wealyield | wealyield | wealyield | wealyield | wealyield | wealyield | wealyield | |
| Type | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | ||
| Fan Motor | Brand | Lifeng | Lifeng | Lifeng | RESIN | RESIN | Lifeng | Lifeng | Lifeng | |
| Type | DC | DC | DC | DC | DC | DC | DC | DC | ||
| Water Pump | Brand | Shimge | Shimge | Shimge | Shimge | Shimge | Shimge | Shimge | Shimge | |
| Type | DC/PWM1-3 | DC/PWM1-3 | DC/PWM1-3 | DC/PWM1-3 | DC/PWM1-3 | DC/PWM1-3 | DC/PWM1-3 | DC/PWM1-3 | ||
| Fin Evaporator | Number of rows | 1.5 | 2 | 2 | 3 | 3 | 2.3 | 2.3 | 2.3 | |
| Tube Diameter | Φ7 | Φ7 | Φ7 | Φ7 | Φ7 | Φ7 | Φ7 | Φ7 | ||
| Expansion Tank | / | / | / | / | / | 5L | 5L | 5L | ||
| Electrical heater | / | / | / | / | / | / | / | / | ||
| Internet Service Gateway | R485 | R485 | R485 | R485 | R485 | R485 | R485 | R485 | ||
| Compressor Driver Plate | San Hua | San Hua | San Hua | San Hua | San Hua | San Hua | San Hua | San Hua | ||
| Electronic Expansion Valve | San Hua | San Hua | San Hua | San Hua | San Hua | San Hua | San Hua | San Hua | ||
Residential Applications
Ideal for single-family homes, villas, and apartments. With A+++ efficiency and stable operation down to -30℃, the system delivers year-round comfort while reducing heating bills by up to 70% compared to electric or gas systems.
Commercial & Light Commercial
Perfect for offices, retail spaces, cafes, restaurants, small hotels, and multi-family buildings. The 6-24kW capacity range and Modbus RTU protocol enable seamless integration with building management systems for centralized control. Industry data indicates heat pumps can deliver heating and cooling simultaneously, reducing overall energy consumption and operating costs.
Renovation Projects
The split system design with antifreeze protection ensures reliable operation even during power outages, while the outdoor unit contains the entire refrigeration circuit, protecting the indoor hydraulic module from freezing. Compatible with radiators, underfloor heating, and fan coil units—making it ideal for replacing gas or oil boilers in existing buildings.
New Build Developments
Ready integration with underfloor heating, smart home controls, and PV systems. A+++ efficiency and R32 low-GWP refrigerant help developers meet tightening energy regulations and achieve green building certifications. With the heat pump market growing at 12.35% CAGR through 2032, builders are increasingly specifying heat pumps as the default heating solution.
Cold Climate Priority
Engineered for regions with harsh winters. The Panasonic DC inverter with EVI technology delivers stable heating even at -25°C-30℃, making it ideal for Northern Europe, Canada, and other cold climate markets where traditional heat pumps often struggle. R32 refrigerant (GWP=675) ensures compliance with EU F-gas regulations and supports decarbonization goals.
