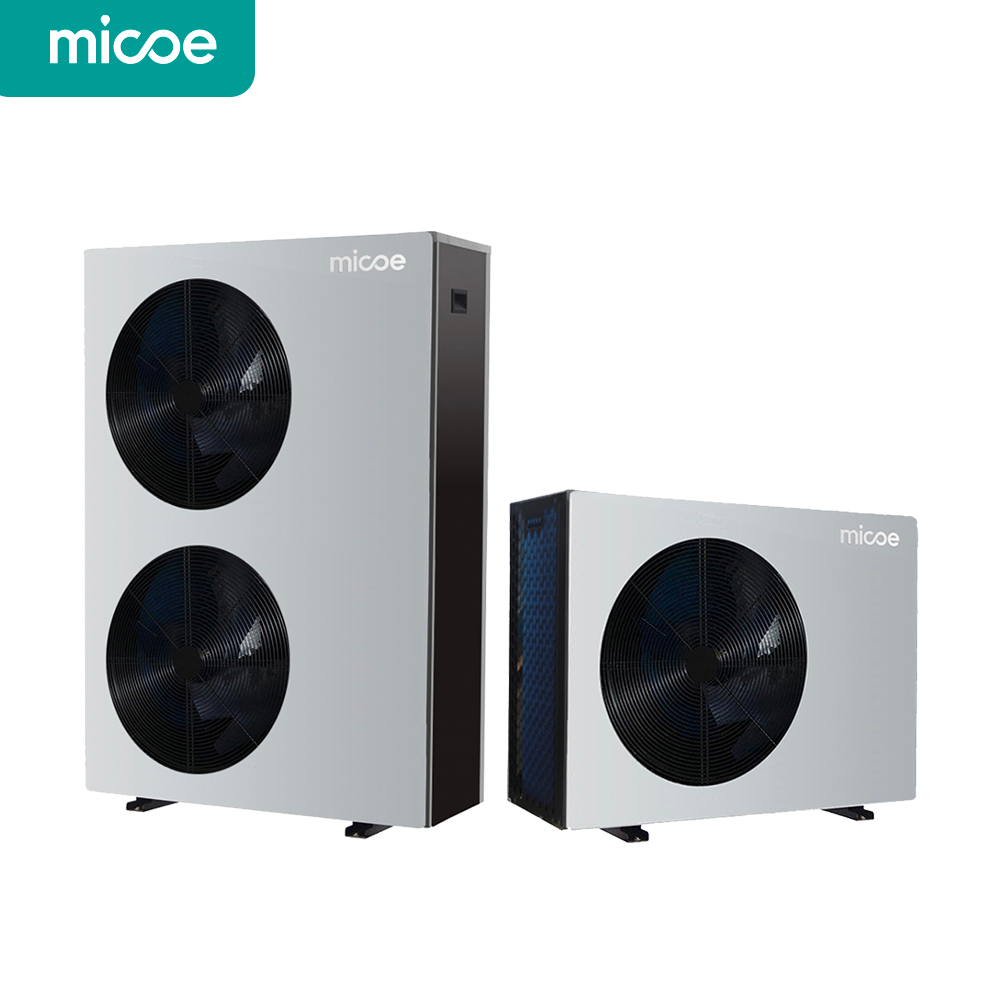

Micoe R32 DC Inverter Heat Pump Water Heater(6-24KW)
Micoe R32 DC Inverter Heat Pump Water Heater(6-24KW)
Micoe R32 DC Inverter Heat Pump Water Heater(6-24KW)
Micoe R32 DC Inverter Heat Pump Water Heater(6-24KW)

Micoe R32 DC Inverter Heat Pump Water Heater(6-24KW)

Functions:

Heating & Cooling and DHW

The R32 monoblock heat pump delivers efficient heating, cooling and domestic hot water for residential applications. Powered by a Panasonic DC inverter compressor with EVI technology, it operates stably down to -35°C. With up to A+++ energy efficiency at 60°C outlet temperature and environmentally friendly R32 refrigerant, it is an ideal solution for cold climates and homes seeking both comfort and energy savings. Available in five capacity options from 6kW to 24kW.

Certifications:

CE · KEYMARK · SG Ready · ErP · RoHS

Features:

  • R32 environmentally friendly refrigerant
  • Energy class: A+++
  • Full DC inverter panasonic compressor and fan motor
  • Consistent functioning at -35°C
  • Outlet water temperature up to 60℃
  • 3-minute defrosting technology
  • 5G/2.4G compatible WiFi module
  • Multi-language operation
  • Low noise operation
  • Power detection function
  • SG-Ready function
  • 5-inch TFT true color screen
  • Multi temperature zone
  • Reserved RS485 communication port
  • Linkage control with PV function

Inquiry Contact Us
1

+86-15194302398
[email protected]
Inquiry
  • Description
  • Specifications
  • Applications

Overview

The R32 monoblock heat pump delivers efficient heating, cooling and domestic hot water for residential applications. Powered by a Panasonic DC inverter compressor with EVI technology, it operates stably down to -35°C. With up to A+++ energy efficiency at 60°C outlet temperature and environmentally friendly R32 refrigerant, it is an ideal solution for cold climates and homes seeking both comfort and energy savings. Available in five capacity options from 6kW to 24kW.

Panasonic DC Inverter with EVI

Equipped with a Panasonic DC inverter compressor and EVI (Enhanced Vapor Injection) technology, this heat pump delivers stable, efficient heating even in extreme cold conditions down to -35°C. The DC inverter adjusts speed continuously, eliminating energy-wasting start-stop cycles and ensuring precise temperature control.

A+++ Energy Efficiency

Achieves A+++ energy efficiency at 55°C outlet temperature. With SCOP up to 4.92, it delivers exceptional seasonal performance — significantly reducing energy consumption compared to traditional electric or gas systems.

Wide Operating Range

Engineered for year-round reliability, this heat pump delivers stable heating down to -35°C, while maintaining efficient cooling up to 43°C — suitable for diverse climate zones.

Intelligent Defrosting

The intelligent defrosting system minimizes defrost cycles to just 3 minutes, preventing heat loss and maintaining consistent indoor comfort even in cold, humid conditions.

R32 Refrigerant

R32 refrigerant offers five key advantages: higher energy efficiency with a GWP of 675 — approximately 70% lower than R410A; lower environmental impact with zero ozone depletion potential; improved safety with lower flammability; compact unit design allowing smaller footprint and lighter weight; and cost-effectiveness with readily available supply.

Quiet Operation

Advanced noise reduction technologies — including 1Hz stepless compressor speed regulation and high-rigidity ABS fan blades — effectively reduce operating noise, making the unit suitable for residential and noise-sensitive areas.

Cost-Effective & Sustainable

Harnesses free ambient air to transfer heat to the water system — significantly reducing energy consumption and operating costs. Lower energy bills for end users. Reduced carbon footprint for the environment.

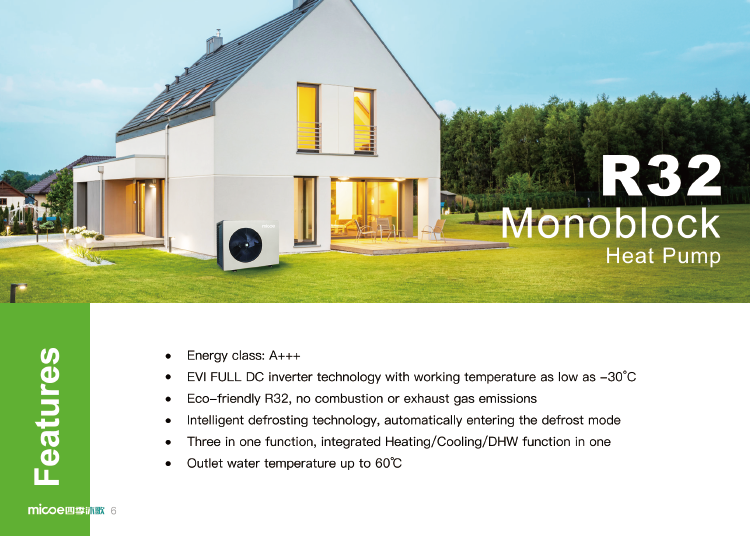

Micoe R32 DC Inverter Heat Pump Water Heater supplier

Model

MMHP-008B1

MMHP-008C1

MMHP-012B1

MMHP-012C1

MMHP-016B1

MMHP-016C1

MMHP-020B1

MMHP-020C1

MMHP-012B2

MMHP-012C2

MMHP-016B2

MMHP-016C2

MMHP-020B2

MMHP-020C2

MMHP-026B2

MMHP-026C2

Rated voltage / Frequency

V~ /  Hz

220-240V~ / 50Hz

220-240V~ / 50Hz

220-240V~ / 50Hz

220-240V~ / 50Hz

380-415V/3N~/50Hz

380-415V/3N~/50Hz

380-415V/3N~/50Hz

380-415V/3N~/50Hz

Heating

(A7/6℃, W30/35℃)

Capacity

kW

2.50-8.30

4.20-12.20

5.30-16.50

6.20-20.50

4.20-12.20

5.30-16.50

6.20-20.50

6.50-26.10

Input Power

kW

0.57-1.92

0.86-2.88

1.15-4.15

1.36-5.28

0.86-2.88

1.15-4.15

1.36-5.28

1.78-6.45

COP

W/W

4.32-5.86

4.23-5.39

3.97-5.43

3.88-5.21

4.23-5.39

3.97-5.43

3.88-5.21

4.04-5.43

Heating

(A7/6℃, W47/55℃)

Capacity

kW

2.30-7.62

3.85-11.20

4.90-15.10

6.30-19.90

3.85-11.20

4.90-15.10

6.30-19.90

6.90-26.10

Input Power

kW

0.75-2.61

1.13-3.75

1.65-5.25

1.65-6.82

1.13-3.75

1.65-5.25

1.65-6.82

1.95-8.55

COP

W/W

2.92-3.33

2.99-3.46

2.87-3.38

2.91-3.34

2.99-3.46

2.87-3.38

2.91-3.34

3.05-3.42

Cooling

Capacity

kW

1.80-7.10

2.60-10.30

4.50-13.50

5.50-17.50

2.60-10.30

4.50-13.50

5.50-17.50

5.20-21.30

Input Power

kW

0.61-2.43

0.91-3.65

1.45-4.85

7.40-28.02

0.91-3.65

1.45-4.85

1.65-6.25

1.95-8.20

Input Cuurent

A

2.71-10.78

4.03-16.19

6.43-21.52

7.40-28.02

1.55-6.20

2.34-7.82

2.80-10.61

3.15-13.23

ERP Level ( 35℃)

/

A+++

A+++

A+++

A+++

A+++

A+++

A+++

A+++

ERP Level ( 55℃)

/

A++

A++

A++

A++

A++

A++

A++

A++

SCOP (35℃) Based on TUV ERP Test Report

4.92

4.55

4.58

4.64

4.55

4.62

4.64

4.58

SCOP (55℃) Based on TUV ERP Test Report

3.37

3.41

3.39

3.42

3.41

3.44

3.42

3.42

Rated Water Flow

m³/h

1.10

1.75

2.50

3.20

1.75

2.50

3.20

4.20

Maximum Input Power

kW

2.71

3.83

6.20

7.50

3.83

6.20

7.50

10.00

Maximum Input Current

A

12.00

17.00

27.50

35.00

6.50

10.50

13.00

17.00

Fuse Selection

Rated Currency

A

12

17

28

35

7

11

13

17

Fusing Current

A

16

23

37

47

9

14

18

23

Air Switch

A

25

25

40

50

16

25

25

25

Cross Sectional Area of Wire

mm²

4.00

4.00

6.00

6.00

2.50

4.00

4.00

4.00

High Pressure Value Cut-off Pressure

MPa

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

Low Pressure Value Cut-off Pressure

MPa

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

Brand Type pf

/

Panasonic / Rotarys

Refrigerant

R32

Refrigerant

kg

1.4

1.8

2.8

3.5

1.8

2.8

3.5

3.5

Fan

Air Flow

m³/h

3500

4500

7000

8500

4500

7000

8500

11000

Defrost

/

Auto Defrost with 4 Way Valve

Waterproof Grade

/

IPX4

Noise Pressure

dB (A)

50

52

55

56

52

55

56

58

Max Water Outlet Temperature

℃

60

60

60

60

60

60

60

60

Diameter of Water Connection

/

DN25 (1")

DN25 (1")

DN32(1-1/4")

DN40 (1.5")

DN25 (1")

DN32(1-1/4")

DN40 (1.5")

DN40 (1.5")

Drainage Valve

mm

15

Internal Pressure Drop at Rating Water Flow

kPa

25

27

30

32

27

30

32

35

Min / Max Heating Water Pressure

bar

1.0 / 3.0

1.0 / 3.0

1.0 / 3.0

1.0 / 3.0

1.0 / 3.0

1.0 / 3.0

1.0 / 3.0

0.5 / 3.0

Net Dimensions ( L×W×H )

mm

1100*495*850

1100*495*850

1110*520*850

1110*485*1450

1100*495*850

1110*520*850

1110*485*1450

1110*485*1450

Net Dimensions ( L×W×H )

mm

1140*530*1000

1140*530*1000

1140*565*1000

1140*520*1600

1140*530*1000

1140*565*1000

1140*520*1600

1140*520*1600

Net Weight

kg

102

107

124

155

107

124

155

160

Gross Weight

kg

114

119

136

175

119

136

175

177

  • Residential Homes
    Single-family homes, villas, and apartments — providing year-round heating, cooling, and domestic hot water in one integrated system. The 6-24kW capacity range and A+++ efficiency make it ideal for homeowners seeking to reduce energy bills while maintaining consistent indoor comfort.
  • Multi-Family Buildings
    Apartment complexes and condominiums — centralized heating and hot water supply with multi-temperature zone control. The Panasonic DC inverter with EVI technology ensures stable operation even in severe winter conditions, providing reliable comfort for all residents regardless of outside temperature.
  • Light Commercial Applications
    Small offices, retail stores, cafes, restaurants, and small hotels — reliable heating, cooling and hot water for spaces with moderate to high demand. The 6-24kW range and 60°C outlet water temperature provide sufficient output for most light commercial applications.
  • Renovation & Retrofit Projects
    Replacing gas or oil boilers in existing buildings — the 60°C outlet temperature ensures compatibility with existing radiator systems. The compact monobloc design simplifies installation, reducing disruption to building occupants during retrofit work.
  • New Build Residential Developments
    Ready integration with underfloor heating systems and smart home controls. A+++ energy efficiency and R32 low-GWP refrigerant help developers meet tightening energy performance regulations and achieve green building certifications.
  • Cold Climate Priority
    Designed specifically for regions with harsh winters — the system delivers stable heating even at -35°C. This makes it particularly suitable for Northern Europe, Canada, and other cold climate markets where traditional heat pumps often struggle to maintain performance in peak winter months.
