| Vacuum tube | |||||
| Type | Area(m) | Diameter(mm) | Length(mm) | Qty(pcs) | Water tank volume(L) |
| SZ58/1800-8S | 0.98 | 58 | 1800 | 8 | 80 |
| SZ58/1800-10S | 1.23 | 58 | 1800 | 10 | 100 |
| SZ58/1800-12S | 1.47 | 58 | 1800 | 12 | 120 |
| SZ58/1800-15S | 1.84 | 58 | 1800 | 15 | 150 |
| SZ58/1800-18S | 2.21 | 58 | 1800 | 18 | 180 |
| SZ58/1800-20S | 2.45 | 58 | 1800 | 20 | 200 |
| SZ58/1800-24S | 2.94 | 58 | 1800 | 24 | 240 |
| SZ58/1800-30S | 3.68 | 58 | 1800 | 30 | 300 |
| SZ58/1800-36S | 4.41 | 58 | 1800 | 36 |
360 |
| Additional Data | |||||
| Inner tank | 0.41mm SUS304-2B | ||||
| Insulation layerr | 50mm thickness | ||||
| Outer tank | 0.31mm SUS201 | ||||
| Material of insulatizon | Polyurethane | ||||
| Water tank diameter | 360mm/460mm | ||||

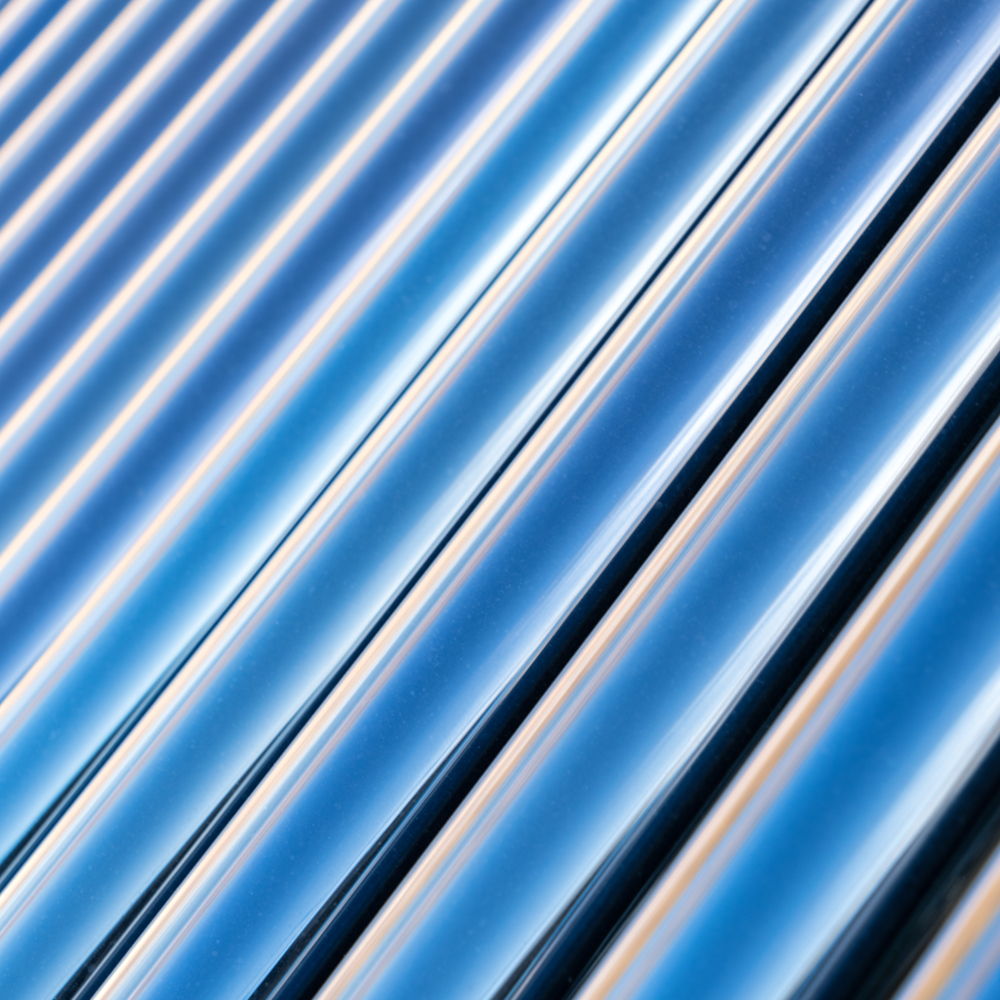

| Vacuum tube | 58/1800mm | ||||
| Collector Angle | 20° | ||||
| Frame | SUS201-1mm | ||||
